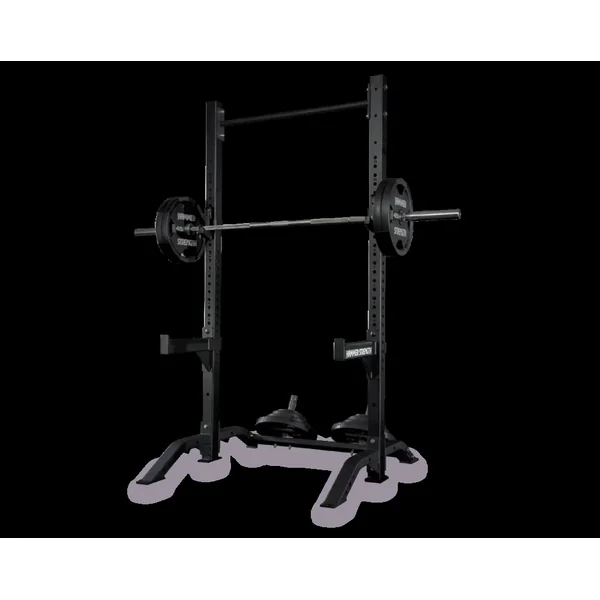

[vc_row][vc_column width=”1/2″][vc_custom_heading text=”FEATURES” font_container=”tag:h2|font_size:45|text_align:left|color:%23441265″ use_theme_fonts=”yes”][vc_column_text]Hammer Strength HD Athletic NX Squat Stand | HDW-SQST Key Features:
- Two available upright heights: 86 in (218.44 cm) or 91 in (231.14 cm) to suit different ceiling heights
- Pull-up options include Monkey Bar, Offset Bar, 2-Handle Bar, or 2×3 Square X-member
- Frame / uprights: built with 3″ × 3″ 11-gauge steel tubing, with laser-cut holes and numbering
- Bar supports and catches: includes standard bar supports and standard bar catches (18 in length) as default; premium or alternate options are available
- Weight horns / storage: comes with two 11-inch weight horns (each holds multiple plates)
- Footprint / dimensions: 53 in (depth) × 48 in (width) × 86 in (height) in one configuration
- Load capacity: supports up to 405 lb (approx. 184 kg) training weight
- Finish & aesthetics: charcoal powder coat frame (durable finish) with option for custom color
- Configurable / modular design: part of the HD Athletic NX line, meant to be upgradable, customizable, and expandable
- Space / ceiling compatibility: designed so training uprights can fit in standard 8-ft (2.44 m) ceiling rooms depending on height choice
[/vc_column_text][/vc_column][vc_column width=”1/2″][vc_empty_space][vc_single_image image=”95851″ img_size=”full” alignment=”center”][/vc_column][/vc_row][vc_row full_width=”stretch_row_content_no_spaces” content_placement=”middle” css=”.vc_custom_1752678622734{margin-top: 0px !important;margin-right: 0px !important;margin-bottom: 0px !important;margin-left: 0px !important;padding-top: 0px !important;padding-right: 0px !important;padding-bottom: 0px !important;padding-left: 0px !important;background-color: #e6e6e6 !important;}”][vc_column width=”1/2″ css=”.vc_custom_1751907815560{margin-top: 0px !important;margin-right: 0px !important;margin-bottom: 0px !important;margin-left: 0px !important;padding-top: 0px !important;padding-right: 0px !important;padding-bottom: 0px !important;padding-left: 0px !important;}”][vc_single_image image=”95854″ img_size=”full” alignment=”center” css=”.vc_custom_1759287261302{margin-top: 0px !important;margin-bottom: 0px !important;padding-top: 0px !important;padding-bottom: 0px !important;}”][/vc_column][vc_column width=”1/2″ css=”.vc_custom_1751907927953{margin-top: 0px !important;margin-bottom: 0px !important;padding-top: 0px !important;padding-bottom: 0px !important;}”][vc_column_text css=”.vc_custom_1759287222457{margin-top: 0px !important;margin-bottom: 0px !important;padding-top: 5% !important;padding-right: 10% !important;padding-bottom: 5% !important;padding-left: 10% !important;}”]HD ATHLETIC NX HEIGHT
91″ (231.14 cm) OR 86″ (218.44 cm) HEIGHT
Why two different height options?
Each HD Athletic NX Rack training upright can fit in rooms with a standard 8′ (2.44 cm) ceiling. Create the perfect combination to match ceiling height limitations and user height requirements.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_empty_space][vc_column_text]PULL UP OPTIONS[/vc_column_text][vc_empty_space][/vc_column][/vc_row][vc_row][vc_column width=”1/4″][vc_single_image image=”88598″ img_size=”full” alignment=”center”][vc_column_text]2X3 Xmember
The 2X3 Xmember should be used in facilities that plan to use camera-based training systems.Compatible with HD Athletic Ball Grips (HDT-BG3)[/vc_column_text][/vc_column][vc_column width=”1/4″][vc_single_image image=”88598″ img_size=”full” alignment=”center”][vc_column_text]Offset Bar
Maximize space with the Offset Bar. With two 1.25” textured pull-up bars, this option provides both high and low pulling points with a 9” separation to compensate for lower training uprights.[/vc_column_text][/vc_column][vc_column width=”1/4″][vc_single_image image=”88598″ img_size=”full” alignment=”center”][vc_column_text]2-HANDLE BAR
A Hammer Strength classic, the 2-Handle pull-up bar features 1.25” handles in mixed configurations. This pull-up option features grips on each handle and embodies one of Hammer Strengths’ true design philosophies: supreme ergonomics.[/vc_column_text][/vc_column][vc_column width=”1/4″][vc_single_image image=”88598″ img_size=”full” alignment=”center”][vc_column_text]MONKEY BAR
The most traditional of all pull-up bars. The Monkey Bar has high versatility and is the lowest cost option. The bar is 1.25” in diameter and uses a high-wear, textured paint to enhance grip and extend the finish life.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_empty_space][vc_column_text]ADD-ONS[/vc_column_text][vc_empty_space][/vc_column][/vc_row][vc_row][vc_column width=”1/4″][vc_single_image image=”88614″ img_size=”289X289″ alignment=”center” style=”vc_box_circle_2″][vc_column_text]Premium HR Bar Catches
Premium Half Rack Bar Catches are 22” (56 cm) long and feature a three-sided urethane guard that protects both the catch and the barbell. Two shock absorption pads and vertical displacement brackets prevent damage to the rack. The Premium Catch attaches with a pin through the side of the rack for added strength and stability. The finish is durable high-wear charcoal powder coating with a chrome pin. ASTM rated to 495 lbs.[/vc_column_text][/vc_column][vc_column width=”1/4″][vc_single_image image=”88614″ img_size=”289X289″ alignment=”center” style=”vc_box_circle_2″][vc_column_text]Standard HR Bar Catches
The Standard Half Rack Bar Catches are 18” (46 cm) in length and use a 3-sided urethane guard to shield the catch and the bar. The catch pins easily from the face of the rack and locks in place. The charcoal finish is a durable matte powder coating that includes paint guard tape to help protect the training uprights. ASTM rated to 405 lbs.[/vc_column_text][/vc_column][vc_column width=”1/4″][vc_single_image image=”88605″ img_size=”289X289″ alignment=”center”][vc_column_text]Premium Bar Supports
The Premium Bar Support is a welded ½” plate protected by an oversized, injection-molded urethane cover for bar protection. The landing area is a 2” resting zone that tapers to 1.5” for wider hand clearance. The finish is a durable high-wear charcoal powder coating with a chrome pin. The interior is wrapped with 3/8” urethane paint guards to prevent any metal-on-metal contact with the rack.[/vc_column_text][/vc_column][vc_column width=”1/4″][vc_single_image image=”88629″ img_size=”289X289″ alignment=”center”][vc_column_text]Standard Bar Supports
The Standard Bar Support is a welded 3/8” plate protected by an injection-molded urethane cover for bar protection. The charcoal finish is a durable matte powder coating that includes paint guard tape to help protect the training uprights. The profile of the landing and resting zone are ASTM and EN compliant.[/vc_column_text][/vc_column][/vc_row][vc_row full_width=”stretch_row_content_no_spaces” content_placement=”middle” css=”.vc_custom_1752677399932{margin-top: 0px !important;margin-right: 0px !important;margin-bottom: 0px !important;margin-left: 0px !important;padding-top: 0px !important;padding-right: 0px !important;padding-bottom: 0px !important;padding-left: 0px !important;background-image: url(https://fitdir.com/wp-content/uploads/2025/07/strength-hd-athletic-nx-2.webp?id=88589) !important;background-position: center !important;background-repeat: no-repeat !important;background-size: cover !important;}”][vc_column css=”.vc_custom_1752682121386{margin-top: 0px !important;margin-right: 0px !important;margin-bottom: 0px !important;margin-left: 0px !important;padding-top: 0px !important;padding-right: 0px !important;padding-bottom: 0px !important;padding-left: 0px !important;background-color: rgba(47,49,47,0.84) !important;*background-color: rgb(47,49,47) !important;}”][vc_empty_space height=”100px”][vc_row_inner equal_height=”yes” content_placement=”middle” css=”.vc_custom_1751910519485{margin-top: 0px !important;margin-right: 0px !important;margin-bottom: 0px !important;margin-left: 0px !important;padding-top: 0px !important;padding-right: 0px !important;padding-bottom: 0px !important;padding-left: 0px !important;}”][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1752679485738{margin-top: 0px !important;margin-bottom: 0px !important;padding-top: 5% !important;padding-right: 10% !important;padding-bottom: 5% !important;padding-left: 10% !important;}”]
HD ATHLETIC
highly configurable, easily upgradable
Built on the legacy of Hammer Strength’s trusted durability and performance, the HD Athletic NX and HD Athletic Pro boast unmatched configurability and expandability. Whether you’re a seasoned athlete or just starting your fitness journey, this rack can be tailored to your specific needs and training style.
[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/2″][/vc_column_inner][/vc_row_inner][vc_empty_space height=”100px”][/vc_column][/vc_row][vc_row full_width=”stretch_row_content_no_spaces” content_placement=”middle” css=”.vc_custom_1751919129101{margin-top: 0px !important;margin-right: 0px !important;margin-bottom: 0px !important;margin-left: 0px !important;padding-top: 0px !important;padding-right: 0px !important;padding-bottom: 0px !important;padding-left: 0px !important;}”][vc_column width=”1/2″ css=”.vc_custom_1751907815560{margin-top: 0px !important;margin-right: 0px !important;margin-bottom: 0px !important;margin-left: 0px !important;padding-top: 0px !important;padding-right: 0px !important;padding-bottom: 0px !important;padding-left: 0px !important;}”][vc_single_image image=”84756″ img_size=”full” alignment=”center” css=”.vc_custom_1751911128442{margin-top: 0px !important;margin-bottom: 0px !important;padding-top: 0px !important;padding-bottom: 0px !important;}”][/vc_column][vc_column width=”1/2″ css=”.vc_custom_1751907927953{margin-top: 0px !important;margin-bottom: 0px !important;padding-top: 0px !important;padding-bottom: 0px !important;}”][vc_column_text css=”.vc_custom_1751909675395{margin-top: 0px !important;margin-bottom: 0px !important;padding-top: 5% !important;padding-right: 10% !important;padding-bottom: 5% !important;padding-left: 10% !important;}”]BUILT TO LAST, BUILT TO PERFORM
HAMMER STRENGTH PLATE-LOADED
Hammer Strength Plate-Loaded the #1 brand of plate-loaded equipment in the world. Hammer Strength has spent decades perfecting machines that move as you move, challenging you to reach your full potential with every rep. Choosing Hammer Strength is a declaration. It’s a statement that you refuse to settle for mediocrity. It’s about pushing your limits, embracing the burn, and emerging stronger, and more confident than ever before.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_empty_space height=”64px”][/vc_column][/vc_row]
